Polyline

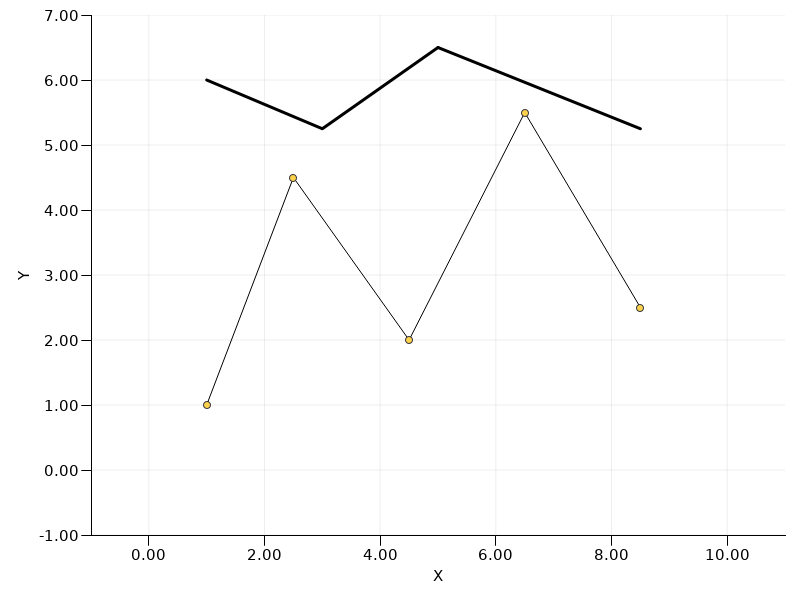

This example demonstrates using Polyline to draw connected open line segments in data coordinates. The editable polyline is paired with the PolylineHandles item so it can be selected, moved by dragging its body and edited by dragging its vertex handles. Clicking empty plot space clears the selection and hides the handles.

 // SPDX-FileCopyrightText: Copyright (c) 2024 Refeyn Ltd and other QuickGraphLib contributors
 // SPDX-License-Identifier: MIT

 import QtQuick
 import QuickGraphLib.GraphItems as QGLGraphItems
 import QuickGraphLib.PreFabs as QGLPreFabs

 QGLPreFabs.XYAxes {
     id: axes

     property var editablePoints: [Qt.point(1, 1), Qt.point(2.5, 4.5), Qt.point(4.5, 2), Qt.point(6.5, 5.5), Qt.point(8.5, 2.5)]
     property bool polylineSelected: true

     function moveEditablePoint(index, position) {
         let nextPoints = editablePoints.slice();
         nextPoints[index] = position;
         editablePoints = nextPoints;
     }
     function moveEditablePolyline(delta) {
         editablePoints = editablePoints.map(point => Qt.point(point.x + delta.x, point.y + delta.y));
     }

     viewRect: Qt.rect(-1, -1, 12, 8)
     xLabel: "X"
     yLabel: "Y"

     MouseArea {
         anchors.fill: parent

         onClicked: axes.polylineSelected = false
     }
     QGLGraphItems.Polyline {
         dataTransform: axes.dataTransform
         points: [Qt.point(1, 6), Qt.point(3, 5.25), Qt.point(5, 6.5), Qt.point(8.5, 5.25)]
         strokeColor: "black"
         strokeWidth: 3
     }
     QGLGraphItems.Polyline {
         id: editablePolyline

         dataTransform: axes.dataTransform
         points: axes.editablePoints
         strokeColor: "black"
         strokeWidth: 1
     }
     QGLGraphItems.PolylineHandles {
         dataTransform: axes.dataTransform
         movable: true
         points: axes.editablePoints
         selected: axes.polylineSelected

         onBodyClicked: axes.polylineSelected = true
         onHandleClicked: axes.polylineSelected = true
         onMoved: delta => axes.moveEditablePolyline(delta)
         onPointMoved: (index, position) => axes.moveEditablePoint(index, position)
     }
 }
