Polygon

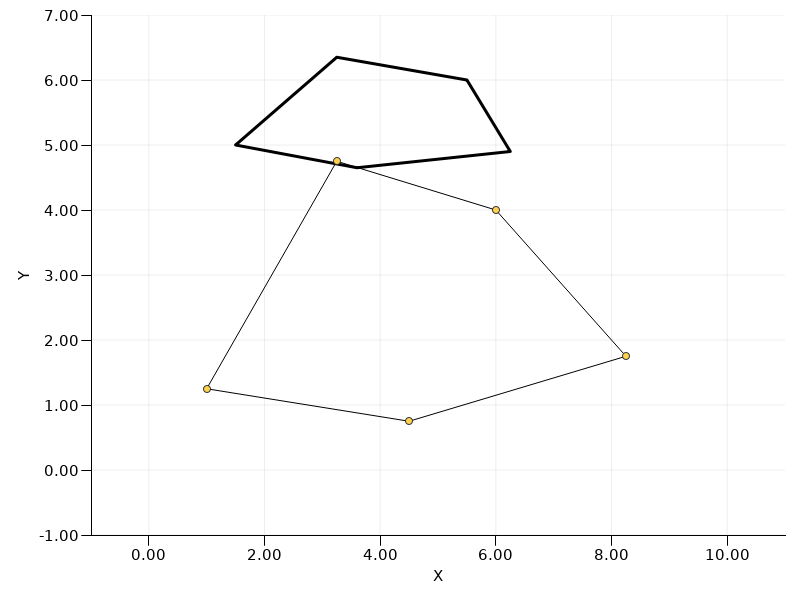

This example demonstrates using Polygon to draw closed filled shapes in data coordinates. The editable polygon is paired with the PolygonHandles item so it can be selected, moved by dragging its body and edited by dragging its vertex handles. Clicking empty plot space clears the selection and hides the handles.

 // SPDX-FileCopyrightText: Copyright (c) 2024 Refeyn Ltd and other QuickGraphLib contributors
 // SPDX-License-Identifier: MIT

 import QtQuick
 import QuickGraphLib.GraphItems as QGLGraphItems
 import QuickGraphLib.PreFabs as QGLPreFabs

 QGLPreFabs.XYAxes {
     id: axes

     property var editablePoints: [Qt.point(1, 1.25), Qt.point(3.25, 4.75), Qt.point(6, 4), Qt.point(8.25, 1.75), Qt.point(4.5, 0.75)]
     property bool polygonSelected: true

     function moveEditablePoint(index, position) {
         let nextPoints = editablePoints.slice();
         nextPoints[index] = position;
         editablePoints = nextPoints;
     }
     function moveEditablePolygon(delta) {
         editablePoints = editablePoints.map(point => Qt.point(point.x + delta.x, point.y + delta.y));
     }

     viewRect: Qt.rect(-1, -1, 12, 8)
     xLabel: "X"
     yLabel: "Y"

     MouseArea {
         anchors.fill: parent

         onClicked: axes.polygonSelected = false
     }
     QGLGraphItems.Polygon {
         dataTransform: axes.dataTransform
         fillColor: "transparent"
         points: [Qt.point(1.5, 5), Qt.point(3.25, 6.35), Qt.point(5.5, 6), Qt.point(6.25, 4.9), Qt.point(3.6, 4.65)]
         strokeColor: "black"
         strokeWidth: 3
     }
     QGLGraphItems.Polygon {
         id: editablePolygon

         dataTransform: axes.dataTransform
         fillColor: "transparent"
         points: axes.editablePoints
         strokeColor: "black"
         strokeWidth: 1
     }
     QGLGraphItems.PolygonHandles {
         dataTransform: axes.dataTransform
         movable: true
         points: axes.editablePoints
         selected: axes.polygonSelected

         onBodyClicked: axes.polygonSelected = true
         onHandleClicked: axes.polygonSelected = true
         onMoved: delta => axes.moveEditablePolygon(delta)
         onPointMoved: (index, position) => axes.moveEditablePoint(index, position)
     }
 }
