Line segment

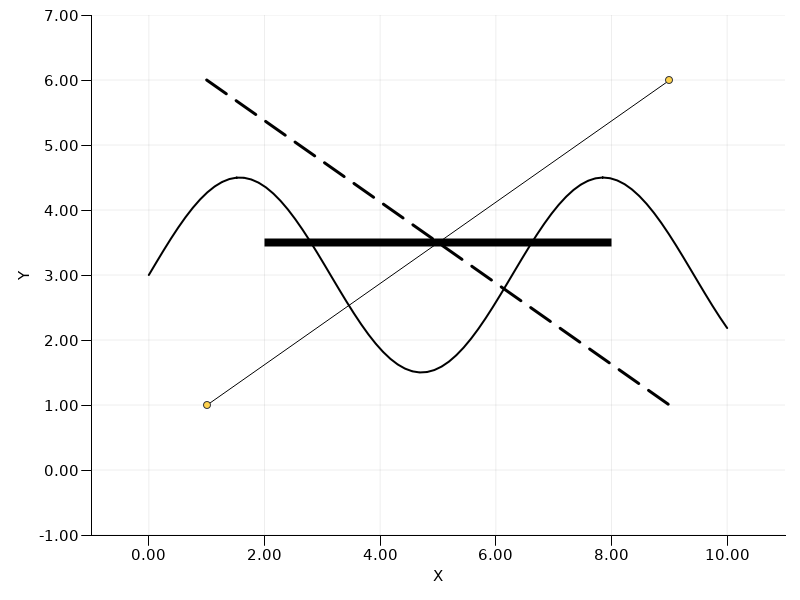

This example demonstrates using LineSegment to draw finite segments between two points in data coordinates. The editable segment is paired with the LineSegmentHandles item so it can be selected, moved by dragging its body and resized by dragging its endpoint handles. Clicking empty plot space clears the selection and hides the handles. The other segments demonstrate standard ShapePath styling properties such as stroke width, dashing and cap style.

 // SPDX-FileCopyrightText: Copyright (c) 2024 Refeyn Ltd and other QuickGraphLib contributors
 // SPDX-License-Identifier: MIT

 import QtQuick
 import QtQuick.Shapes as QQS
 import QuickGraphLib as QuickGraphLib
 import QuickGraphLib.GraphItems as QGLGraphItems
 import QuickGraphLib.PreFabs as QGLPreFabs

 QGLPreFabs.XYAxes {
     id: axes

     property point editablePoint1: Qt.point(1, 1)
     property point editablePoint2: Qt.point(9, 6)
     property bool lineSegmentSelected: true

     function moveEditableLineSegment(delta) {
         editablePoint1 = Qt.point(editablePoint1.x + delta.x, editablePoint1.y + delta.y);
         editablePoint2 = Qt.point(editablePoint2.x + delta.x, editablePoint2.y + delta.y);
     }

     viewRect: Qt.rect(-1, -1, 12, 8)
     xLabel: "X"
     yLabel: "Y"

     MouseArea {
         anchors.fill: parent

         onClicked: axes.lineSegmentSelected = false
     }
     QGLGraphItems.Line {
         dataTransform: axes.dataTransform
         path: QuickGraphLib.Helpers.linspace(0, 10, 80).map(x => Qt.point(x, 3 + 1.5 * Math.sin(x)))
         strokeColor: "black"
         strokeWidth: 2
     }
     QGLGraphItems.LineSegment {
         id: editableLineSegment

         dataTransform: axes.dataTransform
         point1: axes.editablePoint1
         point2: axes.editablePoint2
         strokeColor: "black"
         strokeWidth: 1
     }
     QGLGraphItems.LineSegmentHandles {
         dataTransform: axes.dataTransform
         handleMode: QGLGraphItems.LineSegmentHandles.Endpoints
         movable: true
         point1: axes.editablePoint1
         point2: axes.editablePoint2
         selected: axes.lineSegmentSelected

         onBodyClicked: axes.lineSegmentSelected = true
         onHandleClicked: axes.lineSegmentSelected = true
         onMoved: delta => axes.moveEditableLineSegment(delta)
         onPoint1Moved: position => axes.editablePoint1 = position
         onPoint2Moved: position => axes.editablePoint2 = position
     }
     QGLGraphItems.LineSegment {
         dashPattern: [8, 4]
         dataTransform: axes.dataTransform
         point1: Qt.point(1, 6)
         point2: Qt.point(9, 1)
         strokeColor: "black"
         strokeStyle: QQS.ShapePath.DashLine
         strokeWidth: 3
     }
     QGLGraphItems.LineSegment {
         capStyle: QQS.ShapePath.FlatCap
         dataTransform: axes.dataTransform
         point1: Qt.point(2, 3.5)
         point2: Qt.point(8, 3.5)
         strokeColor: "black"
         strokeWidth: 8
     }
 }
